MySQL Route

Feature Since Version Notes
MySQL Route >v1.6.3 Persists MQTT data to MySQL databases.

1. Overview

The MySQL Route implementation in the Coreflux MQTT broker provides a powerful and flexible way to store data from MQTT topics directly into a MySQL database.

For practical examples of LOT Routes, check out the Routes examples in the LOT Samples Repository. This route offers robust configuration options for connection handling, security, and data storage. It can automatically create tables and map data types, simplifying the integration between your MQTT data streams and your relational database.

2. Key Features

  • Native Support: Optimized for MySQL databases.
  • Flexible Connection Configuration: Connect using a full connection string or individual parameters.
  • Secure Communication: Supports TLS/SSL connections to encrypt data in transit.
  • Automatic Table Creation: Automatically creates tables based on the incoming data structure or a predefined model if they do not exist.
  • Intelligent Schema Handling: Dynamically maps JSON data types to appropriate SQL column types.
  • Data Caching: Temporarily caches data during connection interruptions to prevent data loss.

3. Route Configuration

A route can be configured using the addRoute command with the configuration of the Route.

Example: MySQL Route Configuration

DEFINE ROUTE MySQL_Log WITH TYPE MYSQL
    ADD SQL_CONFIG
        WITH SERVER "db-mysql.db.onmyserver.com"
        WITH PORT 25060
        WITH DATABASE "defaultdb"
        WITH USERNAME "doadmin"
        WITH PASSWORD "AVNS_pass_placeholder"
        WITH USE_SSL TRUE
        WITH TRUST_SERVER_CERTIFICATE FALSE

Adding the Route via MQTT Command

To deploy this route to the broker, use the -addRoute command by publishing to the $SYS/Coreflux/Command topic:

-addRoute DEFINE ROUTE MySQL_Log WITH TYPE MYSQL
    ADD SQL_CONFIG
        WITH SERVER "db-mysql.db.onmyserver.com"
        WITH PORT 25060
        WITH DATABASE "defaultdb"
        WITH USERNAME "doadmin"
        WITH PASSWORD "AVNS_pass_placeholder"
        WITH USE_SSL TRUE
        WITH TRUST_SERVER_CERTIFICATE FALSE

For more information about broker commands, see the MQTT Broker Commands documentation.

Deploying Routes with LOT Notebooks

Routes can also be created and deployed interactively using LOT Notebooks in Visual Studio Code. This provides a convenient way to develop, test, and document your routes.

MySQL Route Development in LOT Notebooks

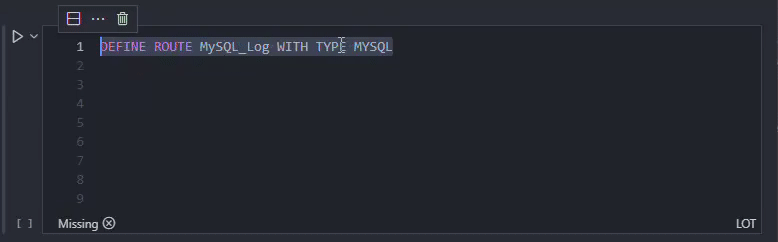

Creating and deploying a MySQL route using LOT Notebooks extension in VS Code

To get started with LOT Notebooks:

  1. Install the LOT Notebooks extension in VS Code

  2. Create a new .lotnb file

  3. Add code cells with your route definitions

  4. Execute the cells to deploy directly to your broker

For detailed instructions, see the LOT Notebooks Getting Started Guide.

4. Data Handling and Reliability

The Routes are designed with reliability in mind to handle common network issues.

Connection Testing

Upon startup or restart, the broker proactively tests the database connection by executing a simple query (SELECT 1). This ensures the connection is valid and ready to accept data before the route is fully activated.

Data Caching

If the connection to the database is lost, the route automatically caches incoming data. - Up to 100 messages are stored in memory. - When the connection is re-established, the cached data is flushed to the database. - If the cache limit is exceeded, the oldest messages are discarded to make room for new ones. This mechanism is designed to handle temporary downtimes, not to serve as a long-term data buffer.

5. Using Models for Structured Data Storage

The MyySQL Route is powerfull when combined with LOT Models. Models act as a schema and transformation layer, converting raw, unstructured MQTT messages into a consistent, structured format suitable for a relational database.

In essence, a Model defines what the data should look like, and the STORE IN command within the model definition tells the broker where to persist that structured information using a specific route.

Automatic Table Creation

A key feature of this integration is the broker's ability to manage your database schema dynamically. When a Model directs data to a table: 1. The broker first performs an efficient, cached check to see if the table already exists. 2. If the table does not exist, it is automatically created based on the fields defined in the Model.

This process includes adding an id column (auto-incrementing primary key) and a timestamp column for you, alongside columns that match the fields from your model.

Example: Storing Structured Sensor Data

Let's consider a practical example where we want to process and store sensor data.

1. The Model Definition

First, we define a model to structure the incoming data. This model listens for raw data on a topic, adds a timestamp, and prepares a structured payload.

DEFINE MODEL MyModel COLLAPSED WITH TOPIC "MyModel"
    ADD "f_event_time" WITH TIMESTAMP "UNIX"
    ADD BOOL"bool" WITH TRUE
    ADD "data" WITH TOPIC "mapping/mydata" AS TRIGGER
    STORE IN "MySQL_Log"
        WITH TABLE "MyModelTable"
How it works: - DEFINE MODEL MyModel...: Creates a new model. - ADD "data" WITH TOPIC "mapping/mydata" AS TRIGGER: This is the trigger. Whenever a message arrives on mapping/mydata, the model executes. - ADD "f_event_time" ... and ADD BOOL"bool" ...: These lines enrich the original payload with a Unix timestamp and a static boolean value. - STORE IN "MySQL_Log" ...: This is the crucial step. It instructs the broker to take the resulting structured data and send it to the MySQL_Log route for storage in the MyModelTable table.

2. The Generated SQL Query

When the model is triggered by a message on mapping/mydata, it constructs the data and the route generates an INSERT statement to store it. For example:

INSERT INTO MyModelTable (f_event_time, bool, data_mydata) VALUES (1678886400, 1, '{"value": 42}');
(Note: The exact syntax and data formatting may vary slightly based on the payload.)
